Our ribbed base plates are available in a variety of designs and dimensions to suit different rail profiles. They provide secure rail support and fastening on sleepers or steel structures and are engineered to meet the required geometric specifications and rail inclination for each application. All designs comply with the applicable industry standards and can be selected to match the specific requirements of your project.

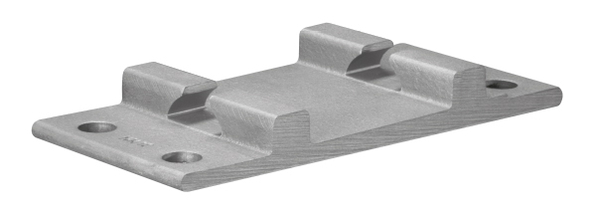

Ribbed Base Plate Rph 1
Ribbed Base Plate Rus 66a
For Welding onto Steel Sleepers or Steel Beams
Ribbed Base Plate Rsw 8
Equivalent to Rus 66a
| Type | Dimensions | Hole Pattern | Inclination | Rail Profile | Weight |
|---|---|---|---|---|---|
| mm | kg/piece | ||||
| PS 60/160 | 375/310/152x16 | 4x26,0 | 1:00 | 60E1/E2 | 8,770 |
| Rp PT/180/2 | 400/340/183x110x15 | 2x26,0 | 1:00 | 60R1/60R2 • 67R1 | 6,000 |
| Rp PT/180/4 | 400/340/183x160x15 | 4x26,0 | 1:00 | 60R1/60R2 • 67R1 | 8,600 |
| Rpb 1/110 | 345/285/127x110 | 2x26,0 | 1:00 | 49E1/E5 • 54E4 | 4,836 |
| Rpb 1/160 | 345/285/127x160 | 4x26,0 | 1:00 | 49E1/E5 • 54E4 | 7,700 |
| Rph 1/150 | 345/285/127/150x15/13 | 4x26,0 | 1:40 | 49E1/E5 • 54E4 | 7,328 |
| Rph 1/160 | 345/285/127/160x15/13 | 4x26,0 | 1:40 | 49E1/E5 • 54E4 | 7,857 |
| Rp 01/01/160 | 345/285/127/160x15/13 | 4x26,0 | 1:00 | 49E1/E5 • 54E4 | 7,700 |
| Rph 1/210 | 345/285/127x210x15/13 | 4x26,0 | 1:40 | 49E1/E5 • 54E4 | 10,549 |
| Rph 1/210 | 345/285/127x210x15/13 | 2x36,3 diagonal | 1:40 | 49E1/E5 • 54E4 | 10,549 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | 4x26,0 | 1:40 | 49E1/E5 • 54E4 | 10,687 |
| Joint Ribbed Base Plates Sph 1(a) | 345/350/127x410x15/13 | 8x26,0 | 1:40 | 49E1/E5 • 54E4 | 20,600 |
| Rph 6/160 | 370/310/152x160x15/13 | 4x26,0 | 1:40 | 60E1/E2 | 8,440 |
| Rph 6/210 | 370/310/152x210x15/13 | 4x26,0 | 1:40 | 60E1/E2 | 11,316 |
| Joint Ribbed Base Plates SZ 60 | 370/350/152x420x15/13 | 8x26,0 | 1:40 | 60E1/E2 | 22,727 |
| Rph 11 Ü | 664/554x160 | 4x26,0 | 1:40 | 54E4 | 15,373 |
| Rph 13 Ü | 690/570x160 | 4x26,0 | 1:40 | 60E1/E2 | 15,268 |
| Rpo 5 (similar) | 345/285/127x160x15/13 | 4x26,0 | 1:20 | 49E1/E5 • 54E4 | 8,720 |
| Type | Dimensions | Inclination | Rail Profile | Weight | |
|---|---|---|---|---|---|
| mm | kg/piece | ||||
| Rus 66a | 110/115x90x15 | Without rounded edges | 1,530 | ||
| Rus 108a | 110/115x60x15 | Without rounded edges | 1,140 | ||
| Rus 26a | 110/115x235x15 | Without rounded edges | 1:00 | 49E1/E5 & 54E4 | 3,860 |
