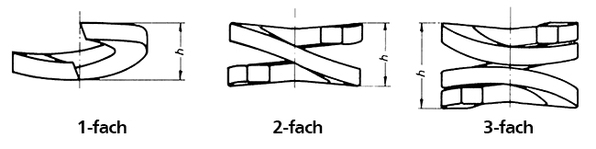

Our fishplates provide secure and reliable rail joints and are available for a wide range of Vignole and grooved rail profiles. The product range includes various designs with matching hole patterns and dimensions, as well as compatible joint accessories such as fish bolts and spring washers. All components are designed for the respective rail profiles and comply with the applicable industry standards.

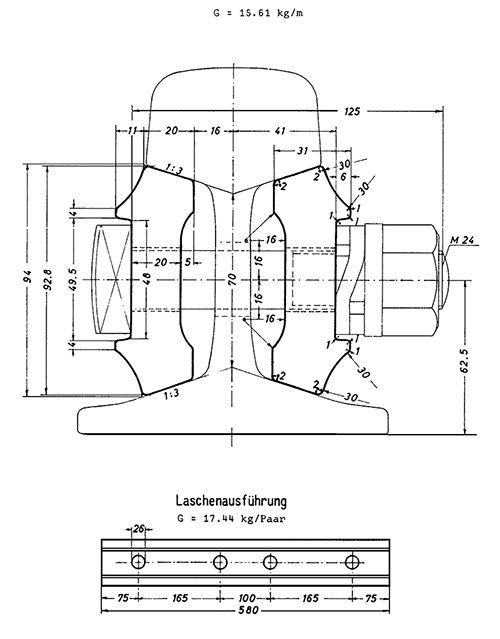

Fishplates for Vignole Rails FL 41/49
Profile
Rail Profile
Length
Hole A
Hole B
Hole C
Weight
mm (approx.)
mm
mm
mm
kg/per pair (approx.)
FL 7
S 7
280
70,0
70
35,0
1,42
FL 10
S 10
300
75,0
75
37,5
1,55
FL 14
S 14
330
75,0
90
37,5
2,72
FL 18
S 18
330
75,0
90
37,5
3,68
FL 20
S 20
330
75,0
90
37,5
4,26
FL 30
30E1
530
128,6
127
73,7
9,5
FL 33
Form 8a/33E1
530
130,0
120
80,0
12,69
FL 41/49
41E1/49E1/E5
580
100,0
165
75,0
17,44
FL 14a
49E1/E5 • 54E4
630
100,0
165
100,0
25,52
FL 14c
49E1/E5 • 54E4
245
40,0
165
40,0
9,80
FL 30a
60E1/E2
610
100,0
165
90,0
33,10

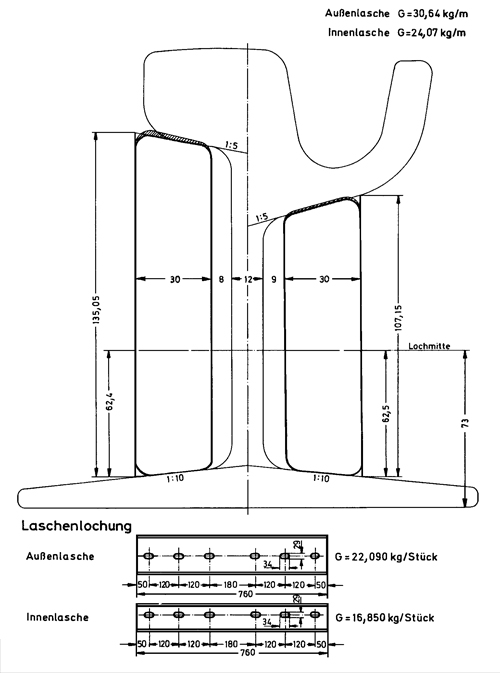

Fishplates for Grooved Rails (59R2 & 60R1/60R2)
New Fishplates for Grooved Rails Mechanically Manufactured
Profile
Rail Profile
Length
Hole A
Hole B
Hole C
Weight
mm (approx.)
mm
mm
mm
kg/per pair (approx.)
FL 37
57R1
760
180
120
120
40,05
FL 37a
67R1
760
180
120
120
38,19
FL Ri 59/60
59R2/60R1/60R2
760
180
120
120
38,94
FL NP 4/4a
NP 4/4a
760
180
120
120
40,47

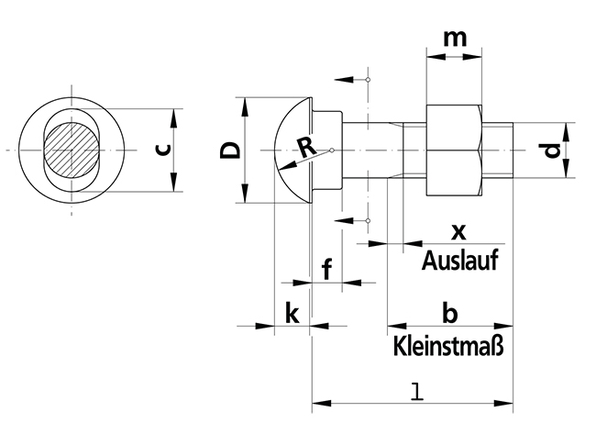

Fish Bolts
DIN 5903 Part 1 – Round head, oval neck, with loose hex nut
Size
For Rail Profile
Weight
10 x 40 mm
S 7
0,040
12 x 40/45 mm
S 10
0,070
12 x 55 mm
S 14
0,075
16 x 65 mm
S 18/S 20
0,159
20 x 90 mm
S 24/30E1
0,351
27 x 130 mm
57R1/67R1
0,932

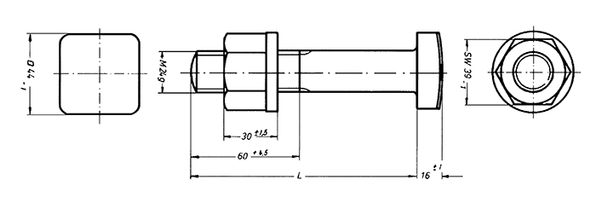

Fish Bolts
DIN 5903 Part 2 – Square head, with or without oval neck, with loose hex nut
